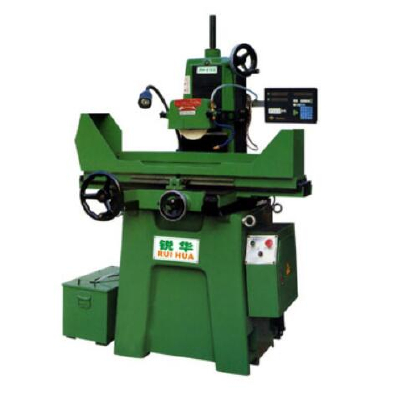

RH-618S dry precision molding grinding

RH-618S dry precision molding grinding

  • Min.Order Quantity: 10 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: yancheng
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-10-27
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0
  • Place of Origin:  yancheng
  • Brand Name:  ruihua
  • Model Number:  RH-618S
  • Weight: 0.000 kg

RH-618S technical parameters

Table size

Table size

150x460mm (6x18 ")

Maximum grinding length

Max.grinding length

475mm (18-3 / 4 ")

Maximum grinding width

Max.grinding width

160mm (6-1 / 3 ")

Spindle center and table distance

Distance from table surface to spindle center

400mm (15-3 / 4 ")

Standard size magnet

Standard magnetic chuck size

150x400mm (6x16 ")

About feeding / manual travel

Cross traverse Feed / Manual travel

465mm (19 ")

Before and after the feed / manual process

Longitudinal Movement / Manual travel

180mm (7 ")

Before and after each hand wheel scale feed

Handwheel per graduation

0.02mm (0.008 ")

Handwheel feed per revolution

Handwheel per revolution

5mm (1/5 ")

Rising handwheel feed per division

Vertical Downfeed / Handwheel per graduation

0.005mm (0.0002 ")

Handwheel feed per revolution

Handwheel per graduation

1mm (0.005 ")

Wheel size (OD x width x diameter)

Wheel size (dia x width x bore)

180x16x32mm / (7 "x2 / 3" x1-1 / 4 ")

Spindle speed (50x60HZ)

Spindle speeds (50HZ / 60HZ)

3000 / 3600rpm

Spindle motor (V3 level)

Spindle motor

1 or 1.5HP

net weight

Net

720kg

Gross Weight (about)

Gross

850kgs (1870lbs)

Packing Dimensions (L x W x H)

Parking Size (Length x width x height)

1400x1150x1980mm (55x45x78 ")

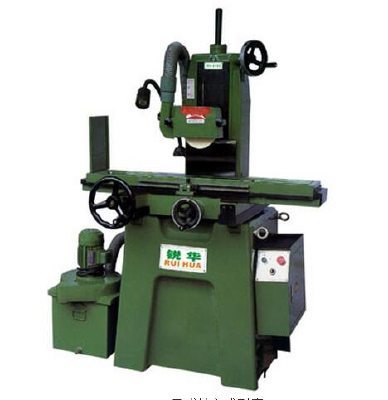

RH-618S dry-precision molding mill


  • Size:  0
  • Place of Origin:  yancheng
  • Brand Name:  ruihua
  • Model Number:  RH-618S
  • Weight: 0.000 kg
